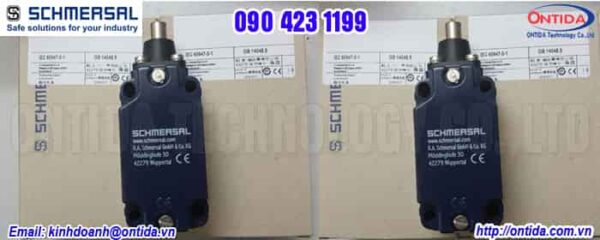

Công tắc hành trình MS 330-11Y-M20-1366
Schmersal 101164485
| Ordering details | |
| Product type description | MS 330-11Y – Ordering suffix |
| Article number | 101160614 |
| EAN code | 4030661190808 |
| eCl@ss | 27-27-06-01 |
| Approval | |
| Approval | USA/CAN |
| Global Properties | |
| Product name | M 330 Druckbolzen S |
| Standards | EN 60947-5-1 |
| Compliance with the Directives (Y/N) | Yes |
| Suitable for safety functions (Y/N) | No |
| Standard housing (Y/N) | No |
| Materials | |
| – Material of the housings | cast iron |
| – Material of the contacts | Silver |
| Housing coating | painted |
| Weight | 175 g |
| Slide form | Sphere |
| Mechanical data | |
| Design of electrical connection | Screw connection |
| Cable section | |
| – Min. Cable section | 1.5 mm² |
| – Max. Cable section | 2.5 mm² |
| AWG-Number | 13 |
| Active principle | mechanical |
| Mechanical life | > 30.000.000 operations |
| notice | All indications about the cable section are including the conductor ferrules. |
| Design of actuating element | Plunger |
| Actuating force | min. 17.5 N |
| restistance to shock | 50 g / 6 ms |
| Bounce duration | ≤ 1.5 ms |
| Switchover time | ≤ 10 ms |
| Contact opening | 2 x 0,5 mm |
| Repeat accuracy of switching points | ± 0,02 mm |
| Actuating speed | |
| – Min. Actuating speed | 1 mm/min |
| – Max. Actuating speed | |
| – Actuating angle | 20° |
| Ambient conditions | |
| Ambient temperature | |
| – Min. environmental temperature | −30 °C |
| – Max. environmental temperature | +90 °C |
| Protection class | IP65 to IEC/EN 60529 |
| Electrical data | |
| Design of control element | Normally open contact (NO), Opener (NC) |
| – Change-over contact with double break | |
| – galvanically separated contact bridges | |
| Switching principle | Snap switch element |
| Number of shutters | 1 piece |
| Number of openers | 1 piece |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated insulation voltage Ui | 250 V |
| Thermal test current Ithe | 6 A |
| Utilisation category | AC-15: 230 V / 2,5 A |
| Max. fuse rating | 6 A gG D-fuse |
| Dimensions | |
| Dimensions of the sensor | |
| – Width of sensor | 40 mm |
| – Height of sensor | 87 mm |
| – Length of sensor | 40 mm |
| Slide diameter | 9 mm |
| notice | |
| notice | Actuation from the side of the plunger should be avoided, since this reduces the mechanical life of the position switch. |
| Diagram | |
Note Diagram |
|
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact
