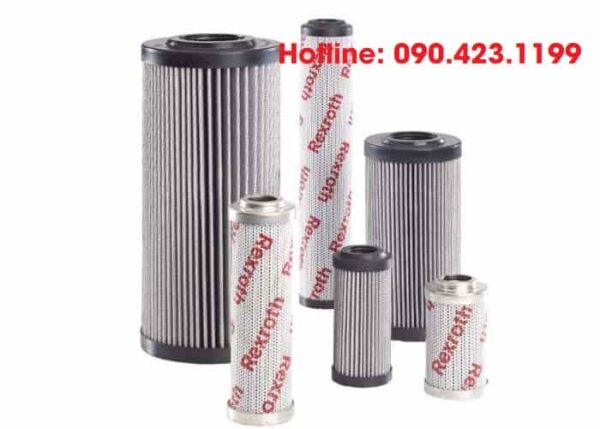

Rexroth Type 2. Size Filter Elements
Size 0040 … 1000
Pressure differential 330 bar
Filter rating 1 µm
Filter area 4.8 m²
Operating temperature range -10 … +100 °C
Features
▶ Filter media
– Glass fiber material of the 5th product generation with electrically conductive non-woven medium and increased dirt holding capacity
– Glass fiber material with water-absorbing function
– Additional filter media: Filter paper, wire mesh,non-woven material and non-woven metal fiber for numerous fields of application in fluid filtration.
▶ Extended product range for non-mineral oil based fluids
▶ ▶ Sizes according to DIN 24550:
1. and 2. 0040 … 1000
▶ Additional sizes:
1.0045 … 2500; 2.0130; 2.0150
4.06 … 4.20; 6.56 … 560; 7,002 … 008
20.0101 … 1051
▶ Pressure differential resistance up to 330 bar [4786 psi]
Rexroth Type 2. Size Filter Elements Type Code:
| 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | |||
| 2. | ‒ | ‒ | 0 | ‒ |
| Design | |||
| 01 | Filter element | 2. 1) | |
| Size | |||
| 02 | according to BRFS standard | 0130 | |
| 0150 | |||
| according to DIN 24550 | 0040 | ||
| 0063 | |||
| 0100 | |||
| 0160 | |||
| 0250 | |||
| 0400 | |||
| 0630 | |||
| 1000 | |||
| Filter rating in μm | |||
| 03 | Nominal | Stainless steel wire mesh, cleanable | G10 |
| G25 | |||
| G40 | |||
| G60 | |||
| G100 | |||
| G200 | |||
| G500 | |||
| G800 | |||
| Paper, not cleanable | P10 | ||
| P25 | |||
| Fleece material, not cleanable | VS25 | ||
| VS40 | |||
| VS60 | |||
| Absolute (ISO 16889) |
Non-woven glass fiber media, not cleanable | H1XL | |
| H3XL | |||
| H6XL | |||
| H20XL | |||
| Glass fiber material generation 5, non-reusable, not cleanable | PWR10 | ||
| Metal fibre fleece, not cleanable | M5 | ||
| M10 | |||
| Water-absorbing, not cleanable | AS3 2) | ||
| AS6 2) | |||
| AS10 2) | |||
| AS20 2) | |||
| Pressure differential | |||
| 04 | max. admissible pressure differential of the filter element | 30 bar | A |
| 330 bar | B | ||
| Element design | |||
| 05 | Adhesive | Standard adhesive | 0 |
| Special adhesive | H 3) | ||
| Element design | |||
| 06 | Material | Standard material | 0 |
| Stainless steel 1.4571 | V 4) | ||
| Bypass valve | |||
| 07 | Without | 0 | |
| Seal | |||
| 08 | NBR | M | |
| FKM | V | ||
| 1) | For the admissible temperature ranges refer to the “Technical data” | ||
| 2) | Only configurable with pressure differential A = 30 bar | ||
| 3) | Improved temperature and media resistance, only in connection with FKM seal | ||
| 4) | Only in connection with special adhesive and FKM seal | ||
| Further filter ratings and seal materials are available upon request. | |||
Bộ lọc R928006865 2.0250AS10-A00-0-M
Bộ lọc R928006892 2.0250AS10-A00-0-V
Bộ lọc R928010577 2.0250AS10-A0V-0-M
Bộ lọc R928010604 2.0250AS10-A0V-0-V
Bộ lọc R928008721 2.0250AS10-AH0-0-M
Bộ lọc R928008748 2.0250AS10-AH0-0-V
Bộ lọc R928012433 2.0250AS10-AHV-0-M
Bộ lọc R928012460 2.0250AS10-AHV-0-V
Bộ lọc R928006874 2.0250AS10-B00-0-M
Bộ lọc R928006901 2.0250AS10-B00-0-V
Bộ lọc R928010586 2.0250AS10-B0V-0-M
Bộ lọc R928010613 2.0250AS10-B0V-0-V
Bộ lọc R928008730 2.0250AS10-BH0-0-M
Bộ lọc R928008757 2.0250AS10-BH0-0-V
Bộ lọc R928012442 2.0250AS10-BHV-0-M
Bộ lọc R928012469 2.0250AS10-BHV-0-V
Bộ lọc R928006883 2.0250AS10-C00-0-M
Bộ lọc R928010595 2.0250AS10-C0V-0-M
Bộ lọc R928010622 2.0250AS10-C0V-0-V
Bộ lọc R928008739 2.0250AS10-CH0-0-M
Bộ lọc R928008766 2.0250AS10-CH0-0-V
Bộ lọc R928006866 2.0250AS20-A00-0-M
Bộ lọc R928006893 2.0250AS20-A00-0-V
Bộ lọc R928010578 2.0250AS20-A0V-0-M
Bộ lọc R928010605 2.0250AS20-A0V-0-V
Bộ lọc R928008722 2.0250AS20-AH0-0-M
Bộ lọc R928008749 2.0250AS20-AH0-0-V
Bộ lọc R928012434 2.0250AS20-AHV-0-M
Bộ lọc R928012461 2.0250AS20-AHV-0-V
Bộ lọc R928006875 2.0250AS20-B00-0-M
Bộ lọc R928006902 2.0250AS20-B00-0-V
Bộ lọc R928010587 2.0250AS20-B0V-0-M
Bộ lọc R928010614 2.0250AS20-B0V-0-V
Bộ lọc R928008731 2.0250AS20-BH0-0-M
Bộ lọc R928008758 2.0250AS20-BH0-0-V
Bộ lọc R928022350 2.0250G40-A00-0-M
Bộ lọc R928012443 2.0250AS20-BHV-0-M
Bộ lọc R928012470 2.0250AS20-BHV-0-V
Bộ lọc R928006884 2.0250AS20-C00-0-M
Bộ lọc R928006911 2.0250AS20-C00-0-V
Bộ lọc R928010596 2.0250AS20-C0V-0-M
Bộ lọc R928010623 2.0250AS20-C0V-0-V
Bộ lọc R928008740 2.0250AS20-CH0-0-M
Bộ lọc R928006809 2.0160H10XL-A00-0-M
Bộ lọc R928008767 2.0250AS20-CH0-0-V
Bộ lọc R928048875 2.0250AS6-A00-0-M
Bộ lọc R928006859 2.0250G10-A00-0-M
Bộ lọc R928006886 2.0250G10-A00-0-V
Bộ lọc R928010571 2.0250G10-A0V-0-M
Bộ lọc R928010598 2.0250G10-A0V-0-V
Bộ lọc R928008715 2.0250G10-AH0-0-M
Bộ lọc R928008742 2.0250G10-AH0-0-V
Bộ lọc R928012427 2.0250G10-AHV-0-M
Bộ lọc R928012454 2.0250G10-AHV-0-V
Bộ lọc R928006868 2.0250G10-B00-0-M
Bộ lọc R928006895 2.0250G10-B00-0-V
Bộ lọc R928010580 2.0250G10-B0V-0-M
Bộ lọc R928010607 2.0250G10-B0V-0-V
Bộ lọc R928008724 2.0250G10-BH0-0-M
Bộ lọc R928008751 2.0250G10-BH0-0-V
Bộ lọc R928012436 2.0250G10-BHV-0-M
Bộ lọc R928012463 2.0250G10-BHV-0-V
